Product Features

· This pump adopts a permanent magnet variable frequency motor and intelligent chip drive control, which is energy-saving and efficient,saving 40%-70%electricity compared to conventional water pumps.

· Adopting Hall sensing principle,automatic start and stop can be achieved with small flow rates,high sensitivity,no frequent starts,no faults

· Long service life (currently the most advanced control switch).

· Multi mode automatic control for start and stop.When the sensor senses that the water pressure is close to zero,it can automatically start pressure maintaining standby,and the power during pressure maintaining is only

· About 8W,when the sensor senses normal water pressure,it can automatically stop standby and maintain pressure.

· Automatic delayed  standby and pressure  maintaining.If the faucet is temporarily turned off during the water use process,this pump can automatically enter delayed standby after 5 seconds

· Pressure maintaining mode,with a pressure maintaining power of only about 8W and a delay time of 5 minutes.If the faucet is not turned on after 5 minutes,it can automatically exit the delay mode

· The standby pressure maintaining mode and automatic shutdown function can effectively solve the problem of low water pressure and inability to start automatically when using water.

· The adapter  power supply is designed with a wide voltage  range,suitable for both 110V-240V and universal for all household power sources worldwide.The working voltage is DC36V,

· Very safe.

· The power cord is connected to the water pump using an aviation plug,which has stronger waterproof and tensile properties and is more upscale.

· Beautiful and generous appearance,fully sealed design,with a protection level of IP67 or above.

· Shielding structure,silent design,no leakage,no vibration,high flow rate,and high head.

· Multiple protections: water shortage protection,locked rotor protection,anti frequent startup protection,and voltage anomaly protection.

· Using alloy materials that never rust,making water more hygienic.

Application Occasions

·Gas water heater        ·Intelligent toilet        ·Shampoo room

·Electric water heater        ·Water dispenser        ·Bathing center

·Air energy        ·Washing machine        ·Tap water pipeline

·Shower nozzle        ·Solar energy        ·Livestock ranch

·Shower        ·Gas wall mounted furnace        ·Small hotels

·Wash basin        ·Electric wall mounted furnace        ·Industrial equipment

Usage Conditions:

·Adapter  power  input  voltage: AC110-240V150-60Hz

·Motor  input  voltage: DC36V

·Automatic  start  condition: water  output  of  faucet  or nozzle  ≥1L/min

·Maximum  system  pressure: ≤6bar

·Medium  temperature: 2-95    ℃

·Environmental   temperature: ≤50    ℃

·Media  conditions: clean, free  of  solid   matter, fiber  free,

          non viscous, Non mineral oil based, approximately

          medium non corrosive, non explosive and flammable liquid.

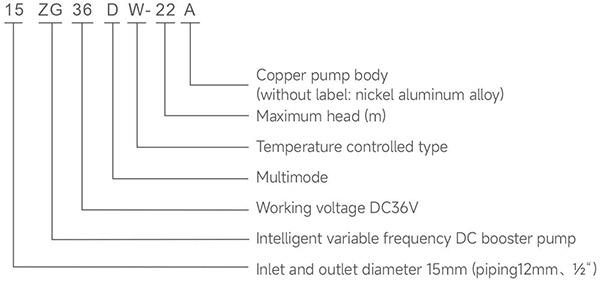

Model Description

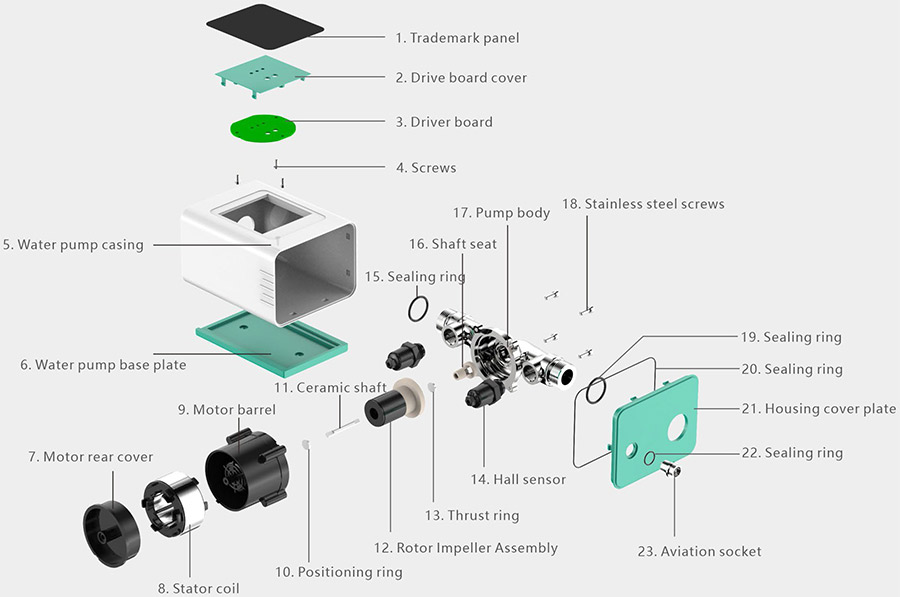

3D structure diagram

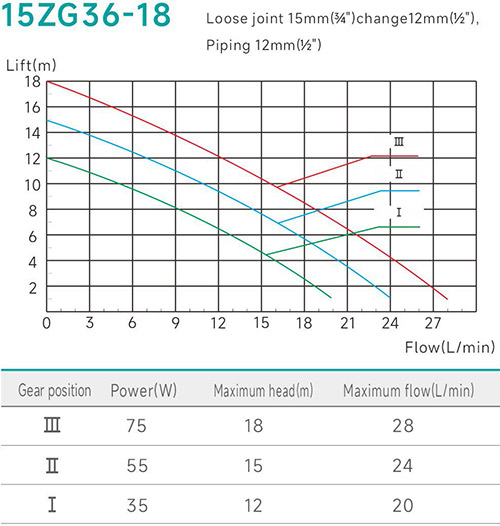

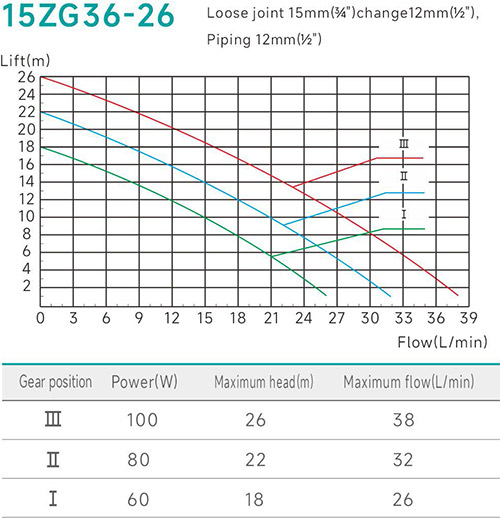

Technical parameters and performance curve:

Using voltage: 110V-240V / 50Hz-60Hz

Working voltage: DC 36V

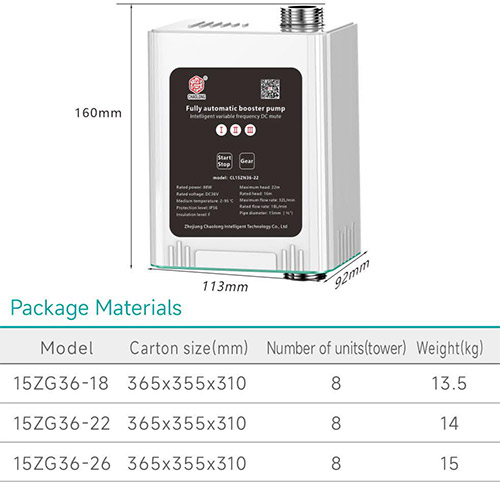

Packaging and Outline Dimensional Drawing
