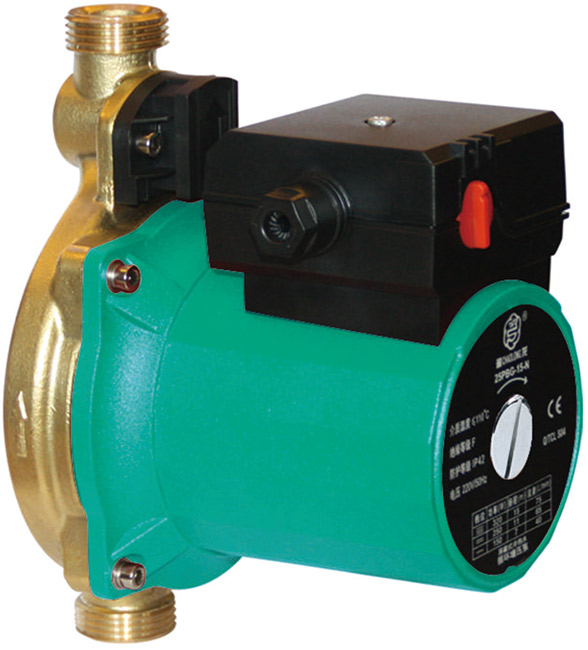

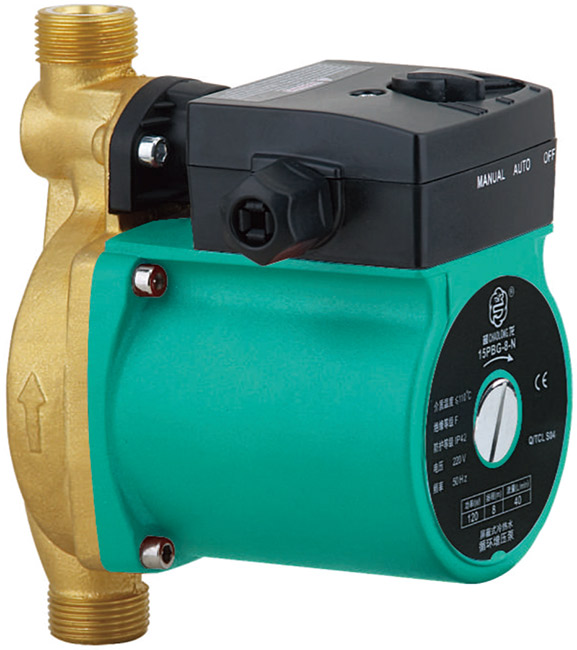

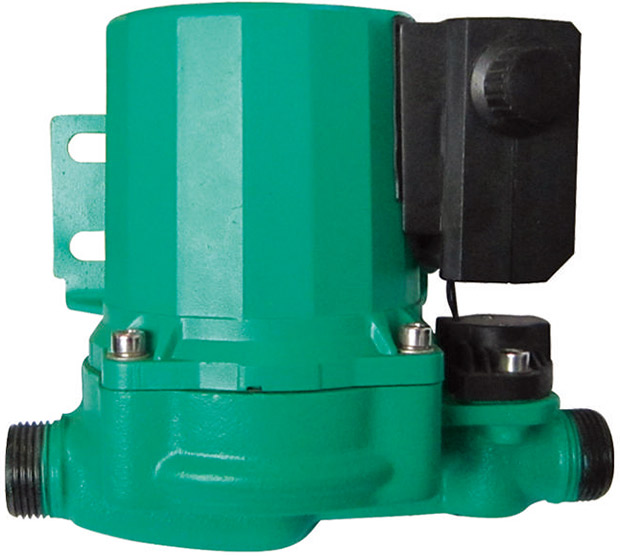

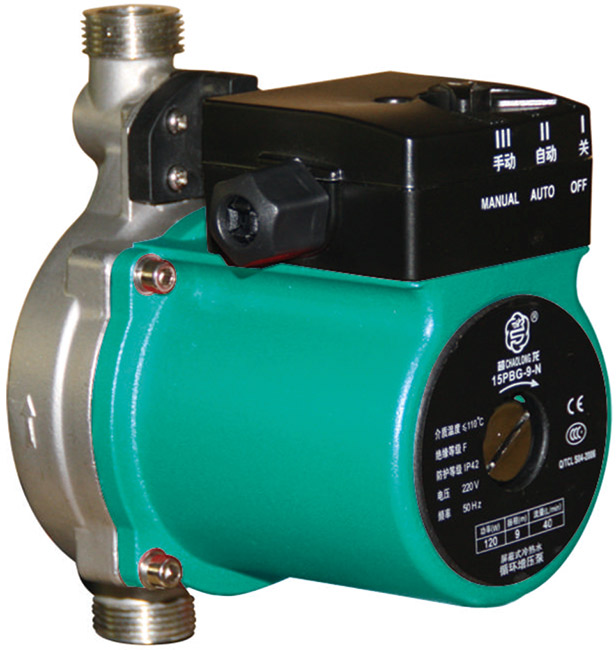

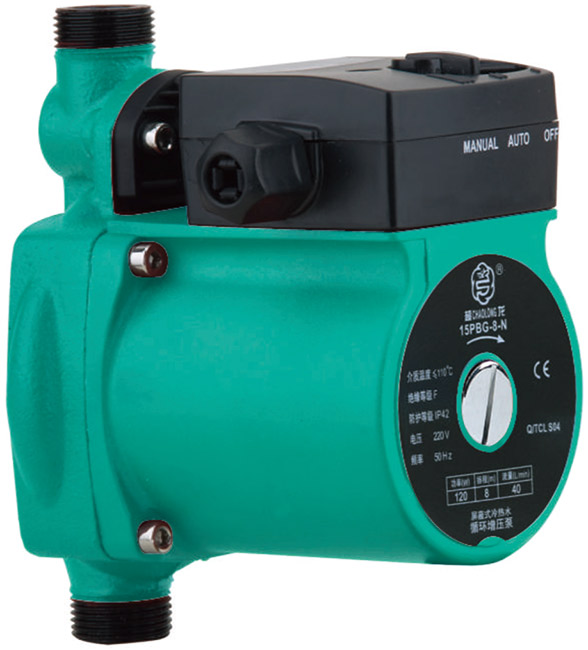

Shielded cold and hot water automatic circulation booster pump
Shielded cold and hot water automatic circulation booster pump
15PBG-10(E)
20PBG-12(E)
20PBG-15(E)
15PBG-9(G)
15PBG-10(G)
20PBG-12(G)
20PBG-15(G)
15PBG-9(S)
15PBG-10(S)
20PBG-12(S)
20PBG-15(S)
15PBG-9(A)
15PBG-10(A)
20PBG-12(A)
20PBG-15(A
Product Features
This pump uses a stainless steel shielding sleeve to completely isolate the water from the coil winding,without the need for mechanical sealing, thus completely solving the problem of water leakage in the water pump.It adopts a high hardness ceramic shaft and ceramic bearings,with direct water circulation between the stator and rotor,which can be used for cooling and bearing lubrication,and completely solves the noise problem. The design is very scientific and advanced,and it can be used continuously for 30000 hours without any faults or maintenance.
Silence,no leakage,no vibration,long service life,and no maintenance are the biggest characteristics of this pump.
Application Occasions
This pump is suitable for pressurized circulation of cold and hot water below 100 ℃,especially for gas showers that are difficult to ignite due to insufficient or unstable water pressure.Installing this pump can completely solve the problem;Boost water supply when the tap water pressure is too low;Air energy,solar water heater pressurized water supply;Low water pressure household washing machine water supply supporting equipment;Boiler hot water circulation pressurization;Industrial equipment liquid pressurization cycle.Pump body material:stainless steel,copper,cast iron.

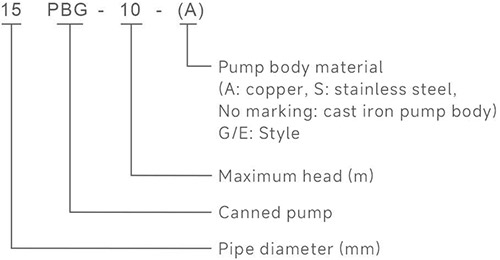

Model Description

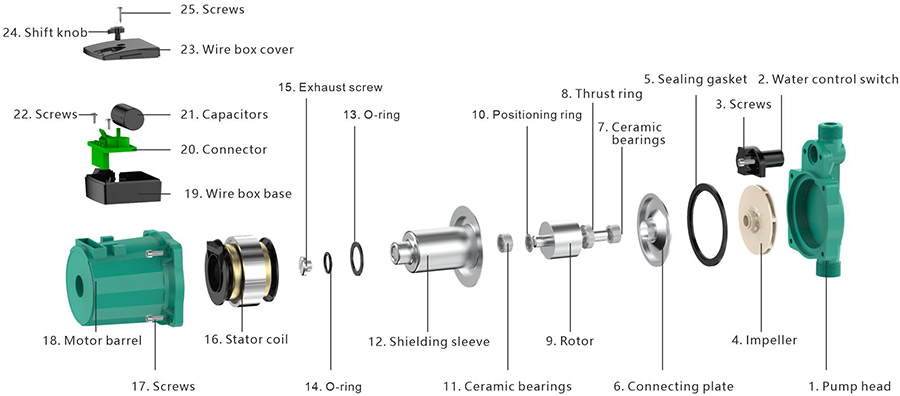

3D structure diagram

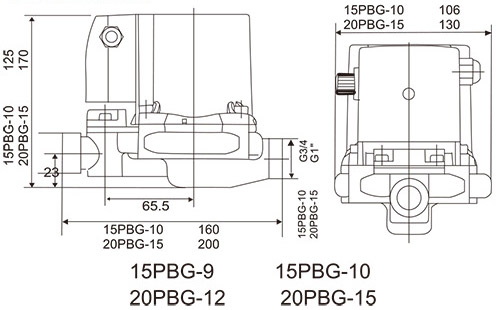

Installation size (mm)

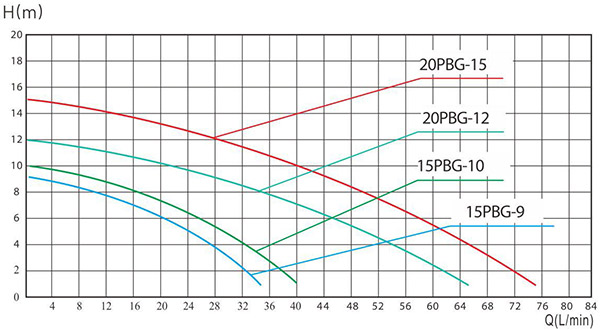

Performance Curve
Technical Parameter
| Model | Power (w) | voltage (V) | frequency (Hz) | Outlet (mm)(In) | speed (r/min) | Max. Head (m) | Max. Flow (L/min) | weight (Kg) | Number (tower) | Car.size (cm) | ||
| long | wide | tall | ||||||||||
| 15PBG-9 | 120 | 220 | 50 | 15(?") | 2800 | 9 | 35 | 23.5 | 8 | 40.5 | 36.5 | 31 |
| 15PBG-10 | 150 | 220 | 50 | 15(?") | 2800 | 10 | 40 | 24.5 | 8 | 40.5 | 36.5 | 31 |
| 20PBG-12 | 250 | 220 | 50 | 15(?") | 2800 | 12 | 65 | 22 | 4 | 45 | 40 | 24.5 |
| 20PBG-15 | 320 | 220 | 50 | 15(?") | 2800 | 15 | 75 | 23 | 4 | 45 | 40 | 24.5 |
